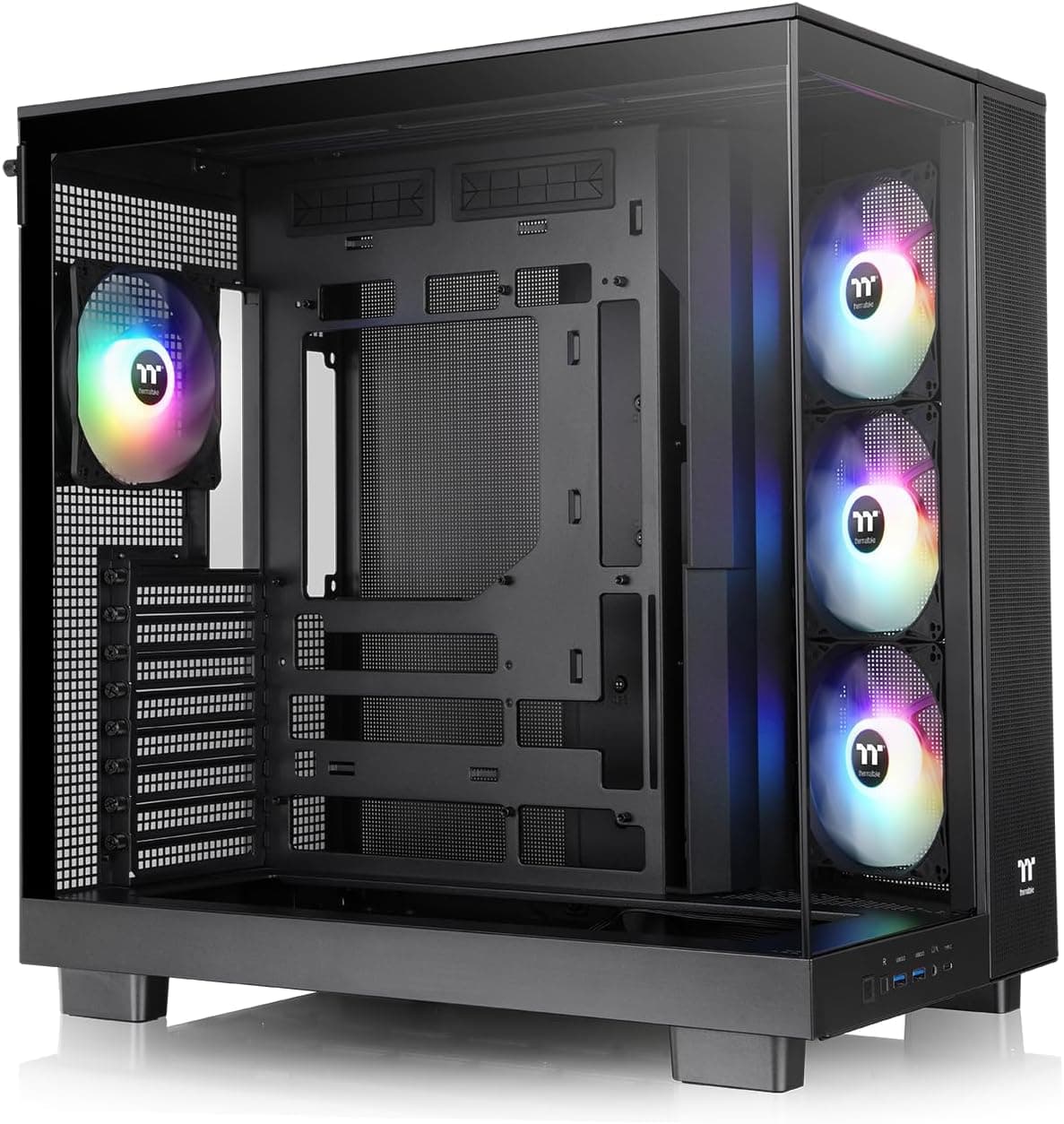

This article covers Thermaltake View 380 XL TG ARGB Black 120mm ARGBファン 4基搭載 ピラーレス ミドルタワー ATX PCケース ブラック CA-11E-00M1WN-00 CS9247.

Overview

The Thermaltake View 380 XL TG ARGB Black is a mid-tower PC case that stands out with its pillarless design and dual-chamber layout. Both side panels are made of 4mm tempered glass, giving you a clear view of your components and RGB lighting right out of the box. It comes with four pre-installed 120mm ARGB Lite fans, so you can start building with decent airflow and illumination immediately. This case supports ATX, Micro-ATX, and Mini-ITX motherboards, and offers generous clearance for high-end hardware: up to 420mm for graphics cards and 160mm for CPU coolers. It strikes a solid balance between expandability and cooling, making it suitable for everything from gaming rigs to creative workstations.

Compatibility Guide

The View 380 XL TG ARGB supports ATX, Micro-ATX, and Mini-ITX motherboard form factors. The power supply mounts at the bottom and accepts standard ATX units. Graphics card clearance is a generous 420mm, and CPU cooler height maxes out at 160mm, so even the largest air coolers and flagship GPUs will fit without issue. Storage options include two 2.5-inch drive bays and one 3.5-inch bay (which can be converted to hold up to three 2.5-inch drives). There are eight expansion slots for multi-GPU setups or add-in cards. The front I/O panel provides USB 3.2 Gen 2 Type-C, two USB 3.0 ports, and HD audio jacks.

Product Info

The Thermaltake View 380 XL TG ARGB Black (model CA-11E-00M1WN-00) launched in 2024 as a mid-tower case positioned in the mid-to-high-end segment. It offers a pillarless, dual-chamber design at a relatively accessible price point, making it a strong contender for builders who want both aesthetics and practicality. Weighing approximately 8.85kg and measuring 288 x 469 x 471mm (WxDxH), the case is built from steel and tempered glass. The four pre-installed 120mm ARGB Lite fans are placed on the right side (three) and rear (one). They are not PWM-controlled, but can be connected to your motherboard's ARGB header for synchronized lighting. The official warranty is three years for Japanese market units.

Best Use Cases

Gaming PC Builders The pillarless design shows off your RGB components beautifully, and the 420mm GPU clearance means you can install even the largest RTX 4090 cards without worry. This case is ideal for builders who want a showpiece gaming rig. However, if you prefer a compact, space-saving case, this is not the right choice. Custom Water Cooling Enthusiasts The top panel supports a 360mm radiator, and the right side can also accommodate a 360mm radiator. The dual-chamber design simplifies cable management, making it a good option for first-time water cooling builders. If you prefer a pure air-cooling setup with minimal fuss, you may want to add more fans or consider a different case. Users Who Value Quiet Operation The included ARGB Lite fans are relatively quiet at idle speeds. However, the case lacks sound-dampening material or anti-vibration mounts, so if absolute silence is your priority, you will need to invest in aftermarket fans and noise-dampening accessories.

Things to Consider

The dual-chamber design makes the case wider than typical mid-towers (288mm), so check your desk or floor space before purchasing. The included fans use 3-pin connectors, meaning they rely on DC voltage control rather than PWM for speed adjustment. This is fine for most users, but enthusiasts may prefer to swap them for PWM fans. The pillarless glass panels look fantastic, but they are heavy and require careful handling during installation. Also, the case only includes one 3.5-inch drive bay, so if you need multiple HDDs, you will need to plan your storage layout accordingly or use external enclosures. ## FAQ
Q: Can I install a 360mm AIO cooler in this case? A: Yes, you can mount a 360mm radiator on the top panel and another on the right side panel. Just make sure your memory modules and VRM heatsinks do not interfere with the top-mounted radiator. Q: What size power supply does this case support? A: It supports ATX power supplies up to 180mm in length. Most standard PSUs (140-160mm) fit without issues, but very long units (200mm+) may not be compatible. Q: Can I control the included fans via my motherboard? A: The included 120mm ARGB Lite fans use 3-pin connectors, so they do not support PWM control. You can adjust their speed using DC voltage control on your motherboard, or add a PWM fan hub for more precise management.

Product Disclosure (Amazon)

  • Manufacturer: Thermaltake
  • Seller: Amazon.co.jp
  • Fulfilled by: Amazon.co.jp
  • ASIN: B0F1G9FK4P
  • Note: This article covers a manufacturer-made product based on Amazon listing details.
