The Cooler Master MasterLiquid PL360 Flux (model MLY-D36M-A23PZ-R1 / FN1676) is an all-in-one (AIO) liquid CPU cooler pairing a 360mm radiator with ARGB fans. This article covers what it fits into, where you have to compromise, and — importantly — who should not buy it.

Overview

The MasterLiquid PL360 Flux is a 360mm-class AIO built around three 120mm fans in a row. That format is chosen by people who need to keep a mid-to-high-end CPU cool under sustained load, or by people whose case simply cannot accommodate a tall air tower without hitting the side panel or the memory modules.

On pricing: it was listed at ¥17,657 on Amazon.co.jp as captured on 2026-06-12.

Prices move, and sale periods can push this lower. A marketplace reference point of $136.31 on eBay US was captured on 2026-07-15.

That puts it in the middle of the 360mm segment — not the cheapest 360mm on the shelf, and not a flagship display-equipped unit either.

User feedback: 181 Amazon reviews at 4.3 out of 5 stars, which works out to an 86% positive score.

A three-digit review count means the rating reflects accumulated, reasonably stable feedback rather than a handful of outliers. That said, AIO coolers are a category where pump noise perception splits opinion, so it is worth skimming the 1- and 2-star reviews before you commit.

Compatibility Guide

With a 360mm AIO, the failure point is almost never the socket — it is whether the radiator physically fits. Check these in order.

1. Radiator mounting space. A 360mm radiator runs roughly 39-40cm long (exact figures vary a few millimetres per product).

You need a mid-tower or larger with an explicit "360mm front" or "360mm top" mounting spec. Many compact and older ATX cases top out at 240mm; if that is your situation, look at a 240mm unit instead.

2. Top-mount motherboard clearance. Mounted in the roof, the radiator plus fans (commonly 50-60mm combined) can collide with the VRM heatsink or the EPS power connector at the top of the board.

Find the "top clearance" figure in your case spec sheet. Overlooking this and having to switch to a front mount mid-build is one of the most common assembly problems.

3. Front-mount drive bay and GPU clearance. Front-mounted, check the 3.5-inch cage and any cable-routing shroud.

Depending on tube routing, a long graphics card can also make contact.

4. Socket support. Current-generation sockets (Intel LGA1700 family, AMD AM5 / AM4) are generally supported, but bundled bracket contents can differ by production batch, especially for the newest and the oldest sockets.

Note your motherboard's socket name and verify against the product page and the manufacturer's compatibility list rather than assuming.

5. Fan and ARGB headers. Three fans plus a pump means counting your free CPU_FAN / SYS_FAN headers and your 5V 3-pin ARGB headers in advance.

If your board has only one ARGB header, you will be using a splitter or the bundled controller. Note that 5V 3-pin ARGB and 12V 4-pin RGB are not interchangeable — plugging one into the other can destroy the device.

6. Power supply. The cooler itself draws very little; it is not a factor in PSU sizing. Your CPU and GPU are.

Product Info

The model number is MLY-D36M-A23PZ-R1 (Japanese distribution code FN1676), a 360mm-radiator AIO CPU cooler in Cooler Master's MasterLiquid line. It uses ARGB-capable fans, and combined with the illuminated pump head it is built for a build you intend to show off.

Pricing, as above: ¥17,657 on Amazon.co.jp captured 2026-06-12.

AIO prices swing with exchange rates and sales, so treat that number as a snapshot from that date and confirm the live price on the listing when you buy.

Reviews stand at 181 with a 4.3-star average (86%).

In the 360mm AIO category, plenty of products sit in the double digits for review count, so a three-digit total works in this one's favour as a decision input.

One important caveat: the specification table on this product listing has been observed containing data from an entirely unrelated product category (a USB-C audio cable). Details are in the Notes Before Buying section.

This article does not treat those specification values as belonging to this cooler.

How It Compares

The 360mm shelf also holds the Thermaltake MAGFloe 360 Ultra, the GIGABYTE AORUS WATERFORCE X II 360 ICE, and the CORSAIR iCUE LINK H150i LCD. What separates the higher tiers is mostly pump-head display capability, daisy-chained fan wiring, and software polish — raw cooling differences between similarly sized 360mm units are often small enough to be hard to feel.

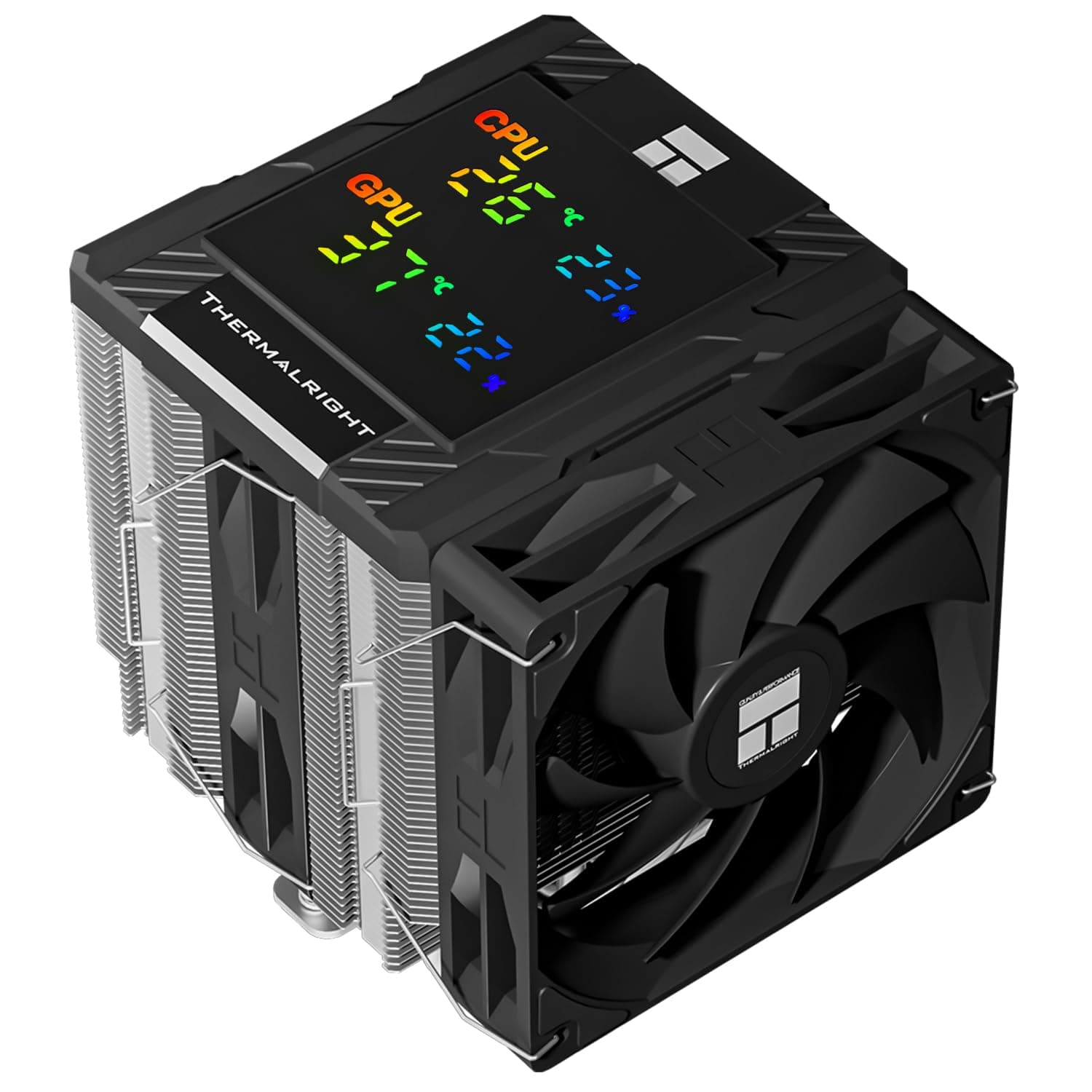

Going the other direction, there are 240mm options in the same family (Elite Liquid 240, 240 Core II) and dual-tower air coolers such as the Thermalright Phantom Spirit 120 EVO or the Peerless Assassin 120 series. This is the real decision point: if you run a mid-range CPU at stock power, a sub-¥10,000 dual-tower air cooler is usually enough in practice. A 360mm AIO earns its price when you sustain a high-TDP CPU at full load for long stretches, or when air simply does not fit.

Notes Before Buying

Start with the listing data mismatch. The product page for this cooler has been observed carrying specifications belonging to a USB-C audio cable — connector type, cable length, conductor material and so on — in its spec fields.

You will see the same inconsistency when you open the page, so verify the product by the images and the model number in the title (MLY-D36M-A23PZ-R1 / FN1676). Do not conclude from the spec field that the listing is for a cable, and equally, do not take those spec values as the cooler's real specifications.

Confirm radiator size and socket support against the manufacturer's official product page.

Next, the inherent trade-off of an AIO. A liquid cooler adds one more moving part — the pump — that an air cooler does not have.

Over years of use, pump noise can change or the pump can fail outright, and when it does the cooler stops doing its job. An air cooler can be kept alive by swapping a fan; an AIO means replacing the whole unit.

If maximum service life is your priority, air wins here.

Calibrate your silence expectations too. More radiator area means you can run the fans slower for the same heat load, which genuinely helps.

But it will not be silent. Pump noise is a type of sound that fan curves cannot tune away, and some people notice it in a quiet room at night.

Check whether your motherboard lets you run the pump header on PWM control rather than a fixed 100% — that setting matters more than most people expect.

If you do not care about lighting, this is overpriced for you. The ARGB hardware is part of the cost.

With a solid, non-windowed side panel, that budget is better spent on a non-illuminated model or a better radiator.

A common misconception: "a 360mm cooler makes my CPU faster." More precisely, it recovers performance only where thermal throttling was already happening.

On a build with thermal headroom to spare, swapping coolers barely moves benchmark scores — what changes is temperature and fan noise. Measure your current CPU temperature under sustained load first, and see whether it is pinned in the 90s, before you buy.

Finally, installation. A 360mm radiator with fans attached is heavy, and you will be supporting it one-handed while driving screws.

Fitting it with the motherboard already in the case is noticeably harder, so mount the radiator early in the build if you can. And never substitute longer screws than the ones supplied — an over-length radiator screw punctures the fins and causes a leak.

Best Use Cases

  • Sustained high-TDP workloads. Video encoding, 3D rendering, long compiles, streaming while gaming — anything that keeps the CPU flat out for tens of minutes is where 360mm of radiator pays off.
  • Builds where air physically will not fit. Tall heatsinks that hit the side panel or collide with tall memory modules make an AIO the practical answer.
  • Lighting-focused builds. ARGB fans plus an illuminated pump head, synced with your motherboard's lighting software.
  • People who want the socket area clear. Unlike a large air tower, an AIO leaves room around the socket for memory swaps and M.2 access.

Conversely, if your CPU is modest and nobody can see inside the case anyway, this product is clearly more than you need.

FAQ

Q. Will a 360mm radiator fit my case? A.

Look for an explicit "360mm radiator support (front or top)" line in the case spec sheet. Then check top clearance if roof-mounting (budget 50-60mm for radiator plus fans) or drive-bay interference if front-mounting.

If the figures are not published, measure it yourself.

Q. Does it support LGA1700 or AM5? A.

Current-generation sockets are generally supported, but bundled bracket contents can vary by batch. Note your motherboard's socket and confirm on the product page and the manufacturer's compatibility list.

Q. How much better is it than a dual-tower air cooler? A.

The general pattern is that differences are small under short bursts and grow under long sustained load, where the coolant volume and radiator area work in the AIO's favour. For very brief spikes, air can actually respond just as well.

Q. Is pump noise a problem? A.

This varies a lot by individual sensitivity. Overall feedback is good — 181 reviews at 4.3 stars (86%) — but acoustics is exactly the kind of attribute that splits opinion, so read the low-star reviews before deciding.

Q. Does it need maintenance? A.

It is a sealed loop, so no coolant top-ups. What actually matters is dust in the radiator fins.

Blowing it out with compressed air every six to twelve months prevents most of the cooling degradation people report over time.

Q. What does it cost?
A. ¥17,657 on Amazon.co.jp as captured on 2026-06-12. Prices change, so check the live listing price at purchase.
