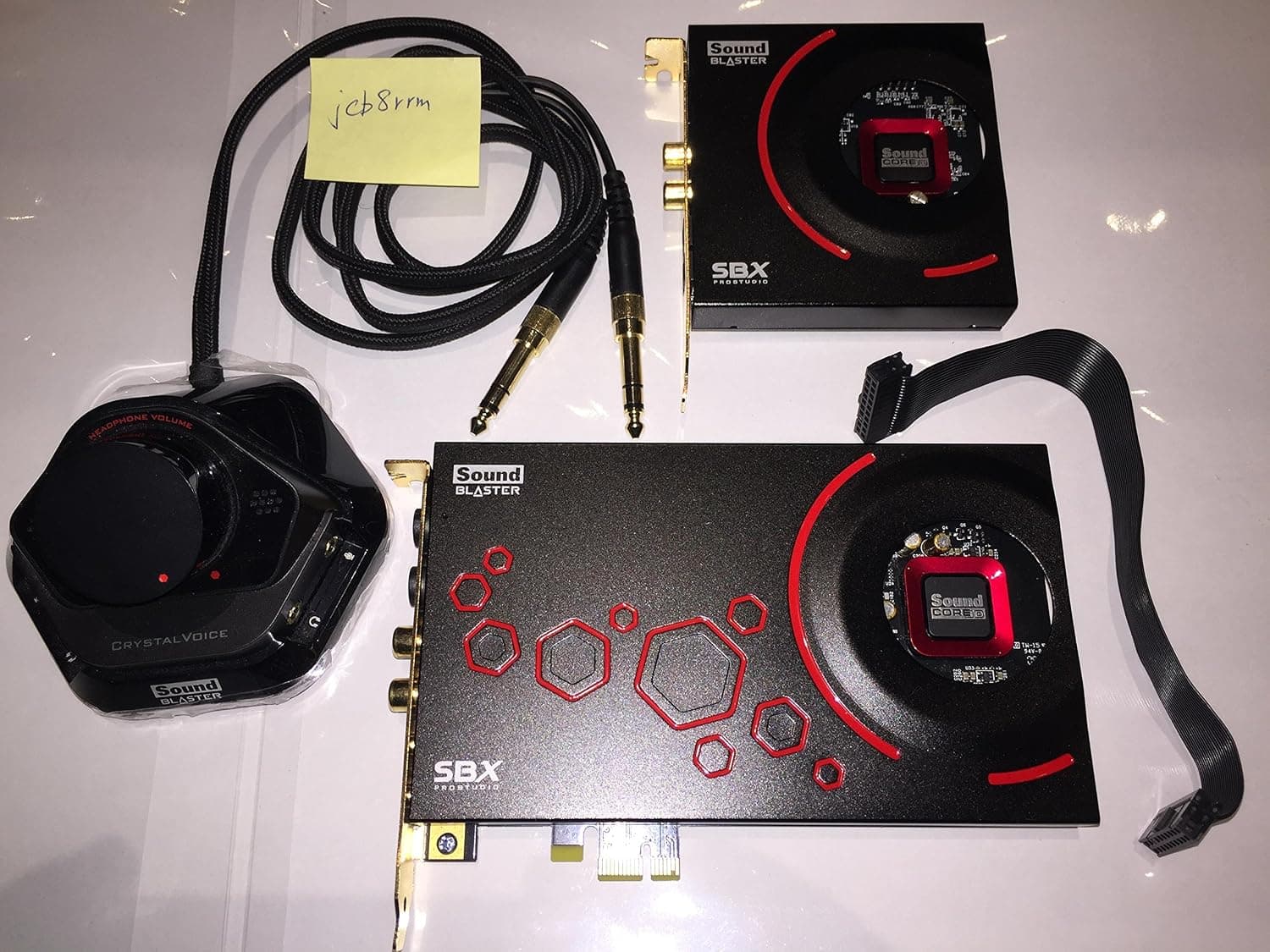

This article covers SB1510 オーディオコントロールモジュール.

Overview

The Creative Sound Blaster ZxR SB1510 is a high-end PCI Express x16 sound card designed for audiophiles and home studio use. It features a dual-DAC configuration with Texas Instruments Burr-Brown PCM1794 (127dB DAC) for front L/R channels and PCM1798 (123dB DAC) for rear/center/subwoofer channels. The ADC is a PCM4220 with 123dB dynamic range, enabling high-quality recording. Weighing 495g and measuring 37×10×20cm, this is a large sound card by any standard. The built-in headphone amplifier uses a Texas Instruments TPA6120A2 (120dB DAC, 80mW into 600 ohms), capable of driving high-impedance headphones with ease.

Connectivity & Compatibility

Interface: PCI Express x16. Officially supports Windows 7 and Windows 8; Windows 10 and Windows 11 are generally compatible but may require legacy driver installation. Rear panel connections include front L/R analog output, rear/center/subwoofer output, line input, microphone input, and headphone output. The internal DBPro board provides an additional high-quality audio path for the front channels.

Product Info

Released around 2013, the Sound Blaster ZxR SB1510 was Creative's flagship sound card. Today it is available as a parallel import on for approximately ¥118,000, placing it in the high-end tier. Warranty depends on the seller (parallel import). The package includes the sound card, audio control module, manual, and driver CD. Compared to modern external DACs and headphone amplifiers, the ZxR offers integrated functionality but lacks the latest USB connectivity and driver support. Its market positioning is squarely aimed at audio enthusiasts who want a single PCIe solution for both high-quality playback and recording, rather than gamers who might prefer a more cost-effective option.

Best Use Cases

  • Audiophiles: Those seeking a high-end all-in-one solution for PC audio. The Burr-Brown DACs and headphone amp deliver excellent sound quality that rivals dedicated external units. However, internal noise from the PC case can be a concern. - Home Studio Users: Musicians and podcasters who need high-quality recording capabilities. The 123dB dynamic range ADC ensures clean captures. Be aware that driver support for modern Windows may be limited, so check compatibility first. - High-Impedance Headphone Owners: Users with 600-ohm headphones who want to drive them directly from a PC without a separate amp. The TPA6120A2 provides 80mW into 600 ohms, sufficient for most high-impedance models. However, USB-powered external DAC/amps may offer better noise isolation. - Gamers: While the ZxR can provide immersive audio, its high cost makes it overkill for most gaming scenarios. Budget-friendly alternatives like the Sound BlasterX G6 offer better value for gaming-focused users.
