This article covers Gigabyte GeForce RTX 4070 WINDFORCE OC 12GB グラフィックカード.

Overview

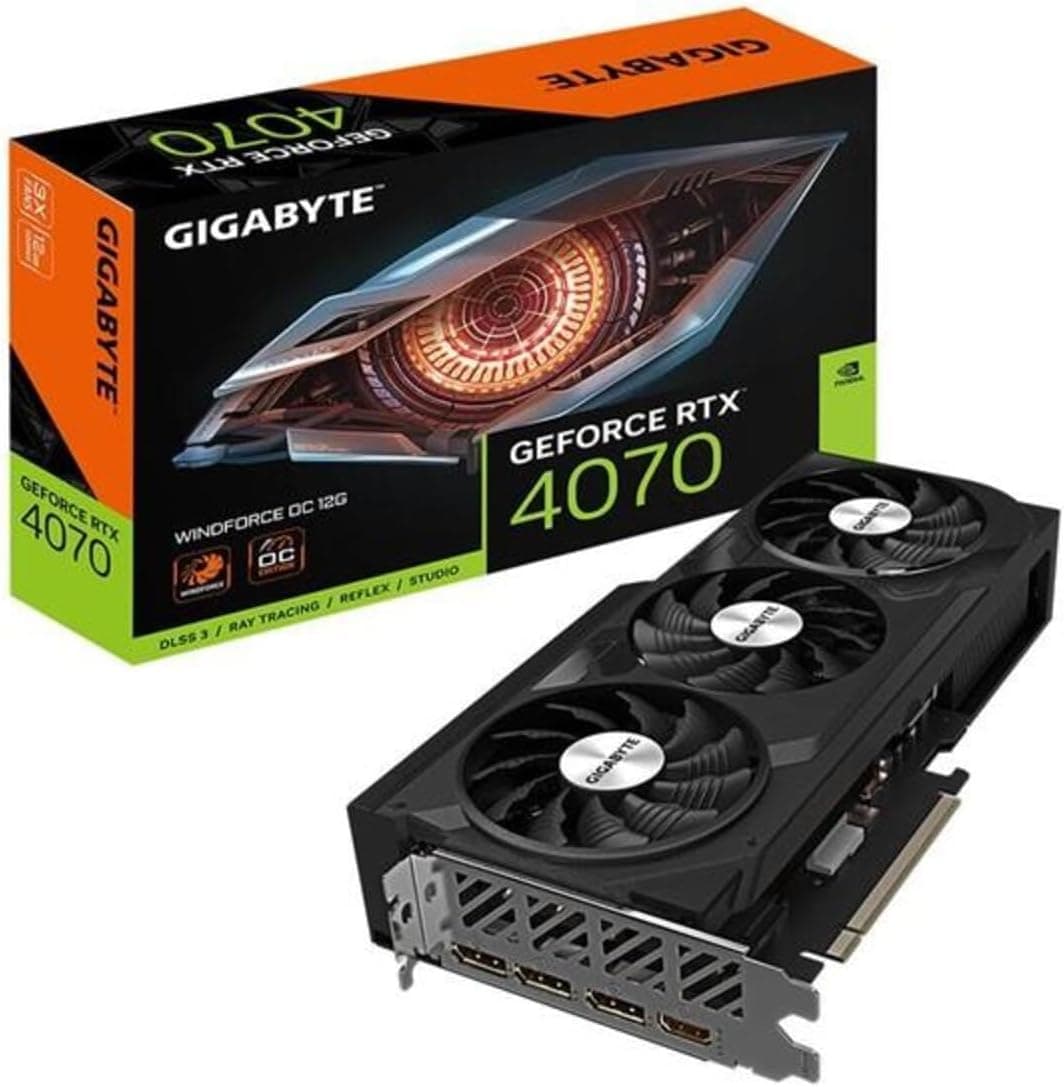

The Gigabyte GeForce RTX 4070 WINDFORCE OC 12GB (model GV-N4070WF3OC-12GD) is a mid-high-end graphics card built on NVIDIA's Ada Lovelace architecture. It features a boost clock of 2490MHz, 12GB of GDDR6X memory on a 192-bit bus running at 21Gbps, and a PCI Express 4.0 interface. What sets this card apart is Gigabyte's WINDFORCE cooling system, which uses three 80mm unique-blade fans spinning in alternating directions. Combined with screen cooling and graphene nano lubricant, the system delivers quiet and reliable thermal performance over long gaming sessions. The card offers two DisplayPort 1.4a outputs and one HDMI 2.1a port, supporting up to four displays and 8K resolution. With full support for NVIDIA DLSS 3 (frame generation), full ray tracing, and NVIDIA Reflex, the RTX 4070 WINDFORCE OC is well-suited for 1440p high-refresh-rate gaming and even capable 4K gaming with upscaling.

Compatibility Guide

This graphics card uses a PCI Express 4.0 x16 interface and is backward compatible with PCIe 3.0 slots. However, running on PCIe 3.0 may cause a slight performance penalty in bandwidth-sensitive scenarios. Power requirements: the manufacturer recommends a 650W or higher power supply. The card requires a single 8-pin PCIe power connector. When choosing a PSU, verify the +12V rail capacity and cable availability. Physical dimensions: approximately 282mm in length and 2.5 slots thick. It fits most ATX mid-tower cases, but compact Mini-ITX or some Micro-ATX cases may have clearance issues. Always check your case's maximum GPU length and slot width before purchasing.

Product Info

The Gigabyte GeForce RTX 4070 WINDFORCE OC 12GB was released in April 2023. It occupies the mid-high tier of the GPU market, offering strong value within the RTX 4070 lineup. Key specs: Ada Lovelace architecture, TSMC 4N process, 5888 CUDA cores, 46 RT cores, 184 Tensor cores, 12GB GDDR6X memory, 504 GB/s memory bandwidth, TDP around 200W, FP32 performance approximately 29.8 TFLOPS. Warranty is typically 3 years (confirm with retailer). The card is widely available through major electronics retailers and online stores.

Best Use Cases

  1. 1440p High-Refresh-Rate Gamers The RTX 4070 delivers over 100fps in most 1440p titles. With DLSS 3 frame generation, supported games like Cyberpunk 2077 and Fortnite become even smoother. Ideal for gamers who want high fidelity without jumping to 4K. 2. Creative Professionals Video editors (DaVinci Resolve, Premiere Pro) and 3D artists (Blender, Maya) benefit from the CUDA and Tensor cores for faster rendering and encoding. The 12GB VRAM handles 4K video timelines and medium-scale 3D scenes comfortably. 3. Power-Conscious Enthusiasts With a TDP of around 200W, this card is more efficient than competing models like the RTX 4070 Ti or RX 7800 XT. The WINDFORCE cooling keeps noise levels low even under load. 4. Who should NOT buy this If you demand native 4K ultra settings with ray tracing at 60fps+ in every title, step up to an RTX 4070 Ti SUPER or higher. Budget-focused buyers may prefer the RTX 4060 Ti or RX 7700 XT.

Things to Consider

First, while PCIe 4.0 is standard, using this card on a PCIe 3.0 motherboard may cause a small performance drop in high-frame-rate scenarios. Second, 12GB of VRAM is sufficient for 1440p gaming today, but some upcoming titles with heavy 4K textures may push beyond that limit. If you plan to keep the card for 3-4 years and play at 4K, consider a 16GB+ model. Third, compared to the AMD Radeon RX 7800 XT (16GB), the RTX 4070 has less VRAM but superior ray tracing performance and DLSS 3 support. Price differences should factor into your decision. Finally, the card uses a single 8-pin power connector, not the newer 12VHPWR standard. This makes it compatible with most existing PSUs without adapters. ## FAQ
Q: What is the difference between the RTX 4070 and RTX 4070 SUPER? A: The RTX 4070 SUPER has roughly 20% more CUDA cores and higher boost clocks, resulting in 10-15% better performance on average. It also costs more. The WINDFORCE OC is a cost-effective standard RTX 4070. Q: Can this card handle 4K gaming? A: Yes, but you may need to lower settings or rely on DLSS 3 frame generation to maintain 60fps in demanding titles. For native 4K high-refresh, consider an RTX 4070 Ti SUPER or higher. Q: What power supply wattage do I need? A: Gigabyte recommends 650W or higher. A 500W PSU may work for a low-power system, but 650W with 80 PLUS certification is advised for headroom and stability.

Product Disclosure (Amazon)

  • Manufacturer: GIGABYTE
  • Seller: world trade shop
  • Fulfilled by: world trade shop
  • ASIN: B0BZDYZ4V5
  • Note: This article covers a manufacturer-made product based on Amazon listing details.
